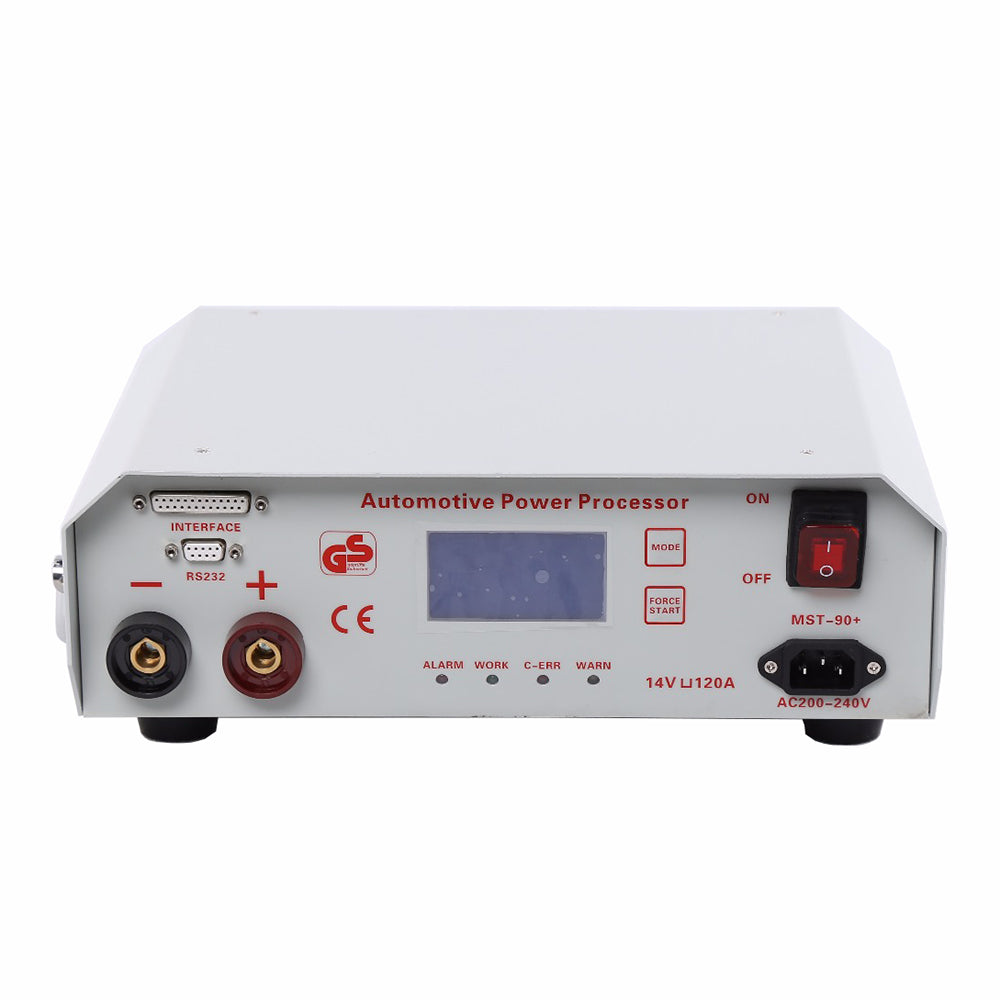

MST-90 120A Automotive Power Processor Programming Voltage Regulator Charger Supply for Car ECU Programming Voltage Stabilizer

MST-90 Programming voltage regulator is also called MST-90 Automotive Power processor, which supply power to the car and adjust the voltage when the car is programming. Beacuse if the voltage is too high, it will damage the ECU. If the voltage is too low, it can’t be programmed. MST-90 120A Automotive Power Processor Function: * Smart vehicle Program * Charging dedicated power * Input voltage 220V only, Output Voltage 14V/120A.  * High temperature alarm. * Intelligent charger for motor vehicles starter battery * Extensive protection functions and self-protection functions * Short circuit and reverse polarity protection MST-90  Automotive Power Processor Applicable models:  For Volvo, for Porsche, for Volkswagen, for A-udi, for BM-W, for Mercedes-Benz, for General Motors Etc. Automotive Programming Dedicated Power Output Characteristics DC voltage: 14.5V Rated current: 0-120A Rated maximum power: 1500W Ripple and noise: 100mVp-p Automotive Programming Dedicated Power Input Characteristics input voltage: AC220V±15%, or AC110V±15% Frequency range: 40-60HZ Power Factor: 0.95 Efficiency: 85% Automotive Programming Dedicated Power Protection Features Overload: 90-110% of rated output power Output voltage/ A : 14V /120A Working temperature: -40°C±85°C Safety: UL60950, TUV EN60950-1 Withstand voltage: I / P-O / P: 3KVAC I / P-FG: 1.5KVAC Insulation resistance: I / PO / P, I / P-FG: 100M Ohms, 500VDC/25 C / 70% RH EMC: Complies with EN55022, EN61000   MST-90  Automotive Power Processor Package Including: 1set x  Automotive Programming Dedicated Power   Item Pictures: How to test MASTER MST 90 120A Automotive Power Processor
