WAFO VS-8 SMART CNC machining center

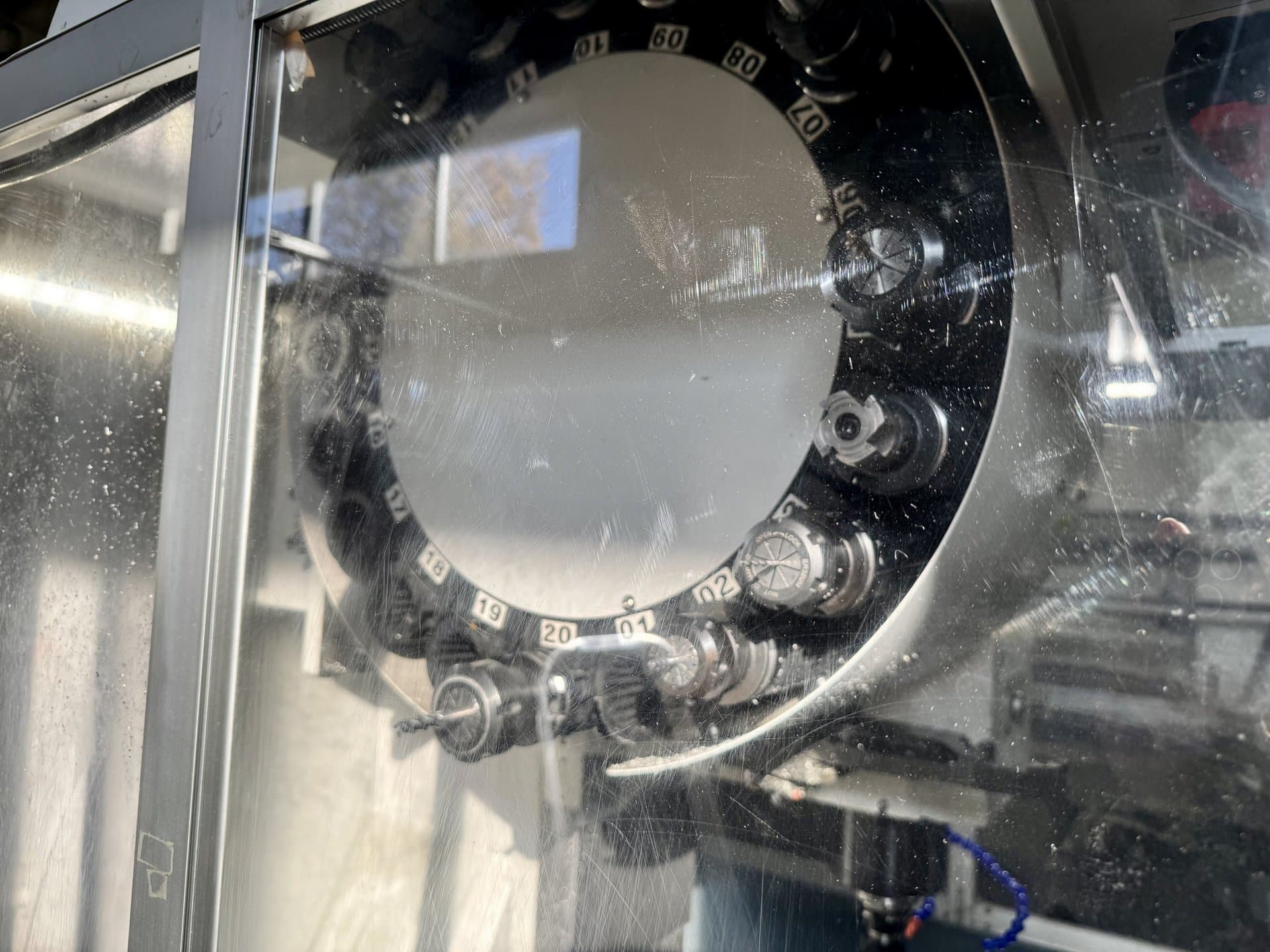

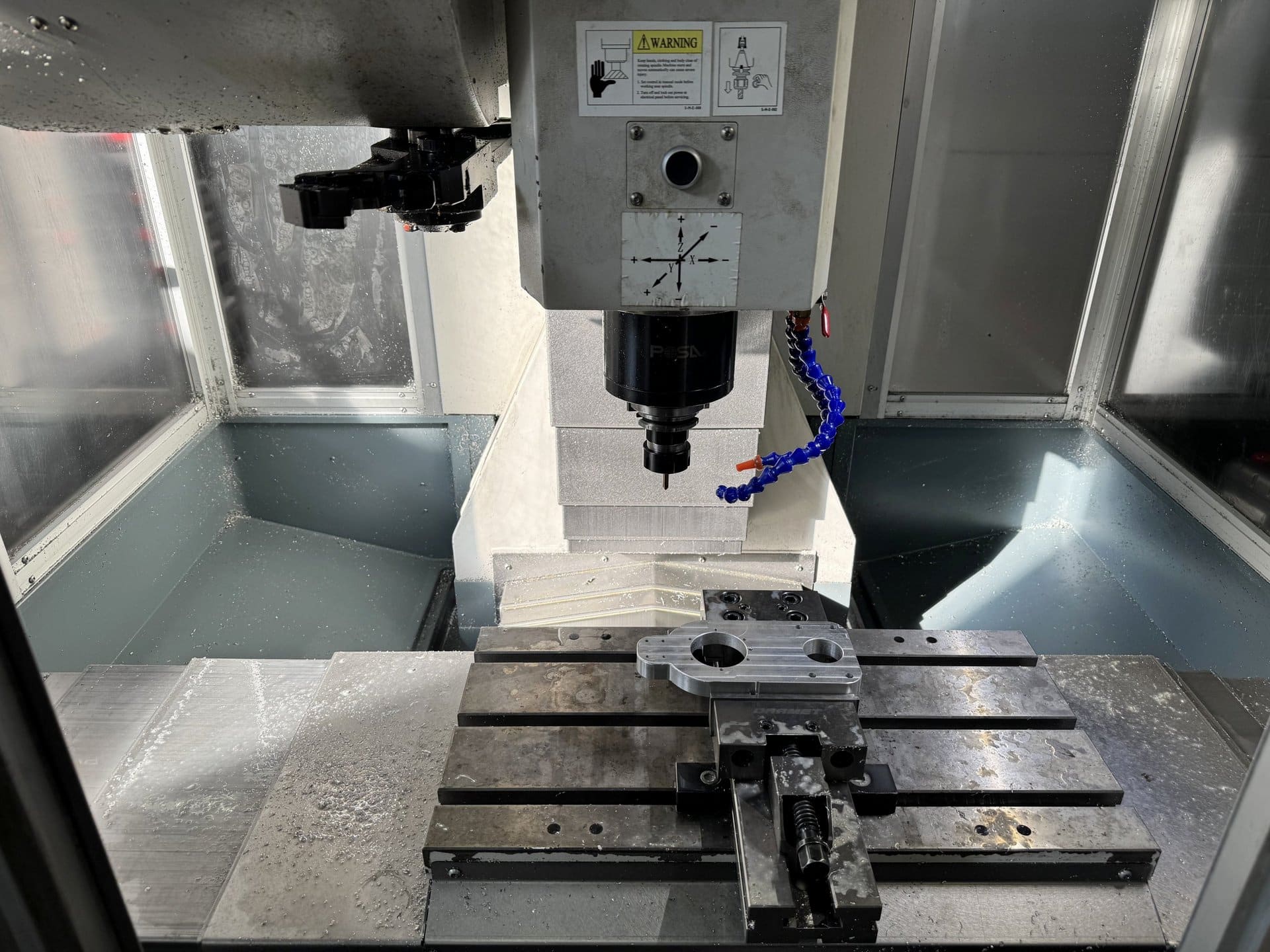

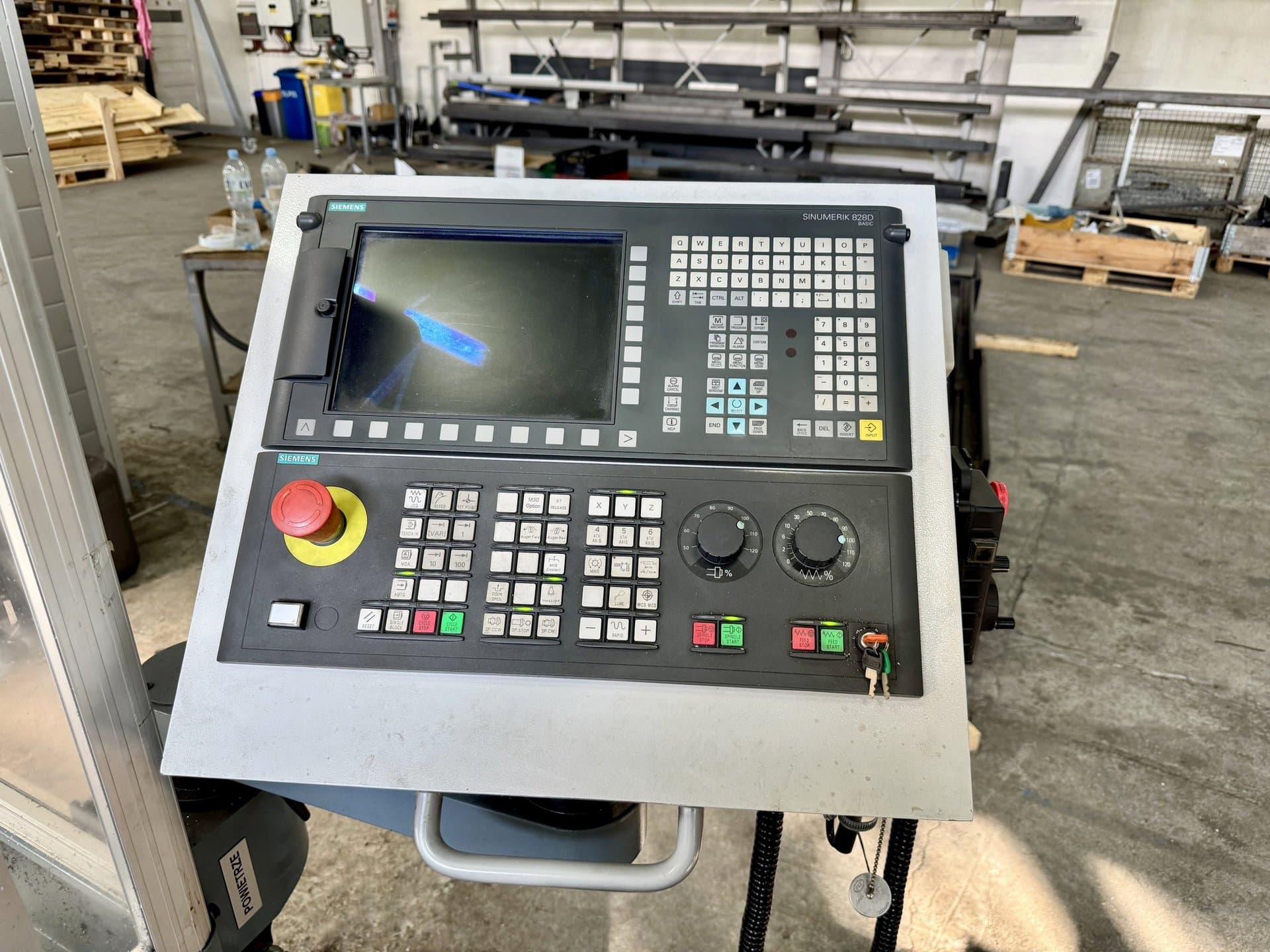

WAFO VS-8 SMART CNC machining center was built in 2022 in Poland by Warszawska Fabryka Obrabiarek WAFO Sp. z o.o. The machine was used occasionally and has worked a small number of hours. The WAFO VS-8 SMART is an excellent choice for both unit and small batch production of precision parts. The machine with its compact design is distinguished by carefully selected components with the best technical parameters, which guarantee outstanding performance over its entire service life. Workpieces with a maximum weight of 150 kg are machined inside a fully enclosed cabin by means of a high-speed spindle and cutting tools taken from a 20-position magazine. Process stability, on the other hand, is ensured by an extremely rigid bed, which eliminates any vibration and oscillation on an ongoing basis. All this is complemented by the extremely easy-to-use SIEMENS CNC control with ShopMill overlay and 3D simulation. The WAFO VS-8 CNC vertical machining center weighs 2100 kg. Technical specifications of WAFO VS-8 SMART CNC milling machine feed in the X/Y/Z axis: 400/300/500 mm feed rate in the X,Y,Z axis: 10 m/min rapid traverse in the X,Y,Z axis: 15 m/min maximum workpiece weight: 150 kg work table dimensions (L x W): 600 x 300 mm maximum spindle rotational speed: 10000 rpm spindle taper: BT40 spindle drive power: 3.7 kW spindle drive type: belt maximum distance from spindle to work table surface: 580 mm minimum distance from spindle to work table surface: 80 mm maximum tool diameter: 95 mm maximum tool length: 150 mm maximum tool weight: 8 kg T-slot number: 3 T-slot width: 16 mm servomotor power in X/Y/Z axis: 750/750/2000 W coolant pump power: 90 W motor power: 5.5 kW power supply: 3x 400 VAC; 50 Hz dimensions (L x W x H): 2068 x 2365 x 2500 mm weight of the WAFO VS-8 SMART machine: 2100 kg Equipment of the WAFO VS-8S milling center SIEMENS SINUMERIK 828D CNC controller with ShopMill overlay and 3D simulation 20-position drum-type tool magazine servomotors in all axes chip ejector with container compressed air gun linear guides in all axes ball screws in all axes coolant pump LED lamp indicating machine status workspace illumination RJ45 interface DTR – Technical and Operating Documentation CE certificate
