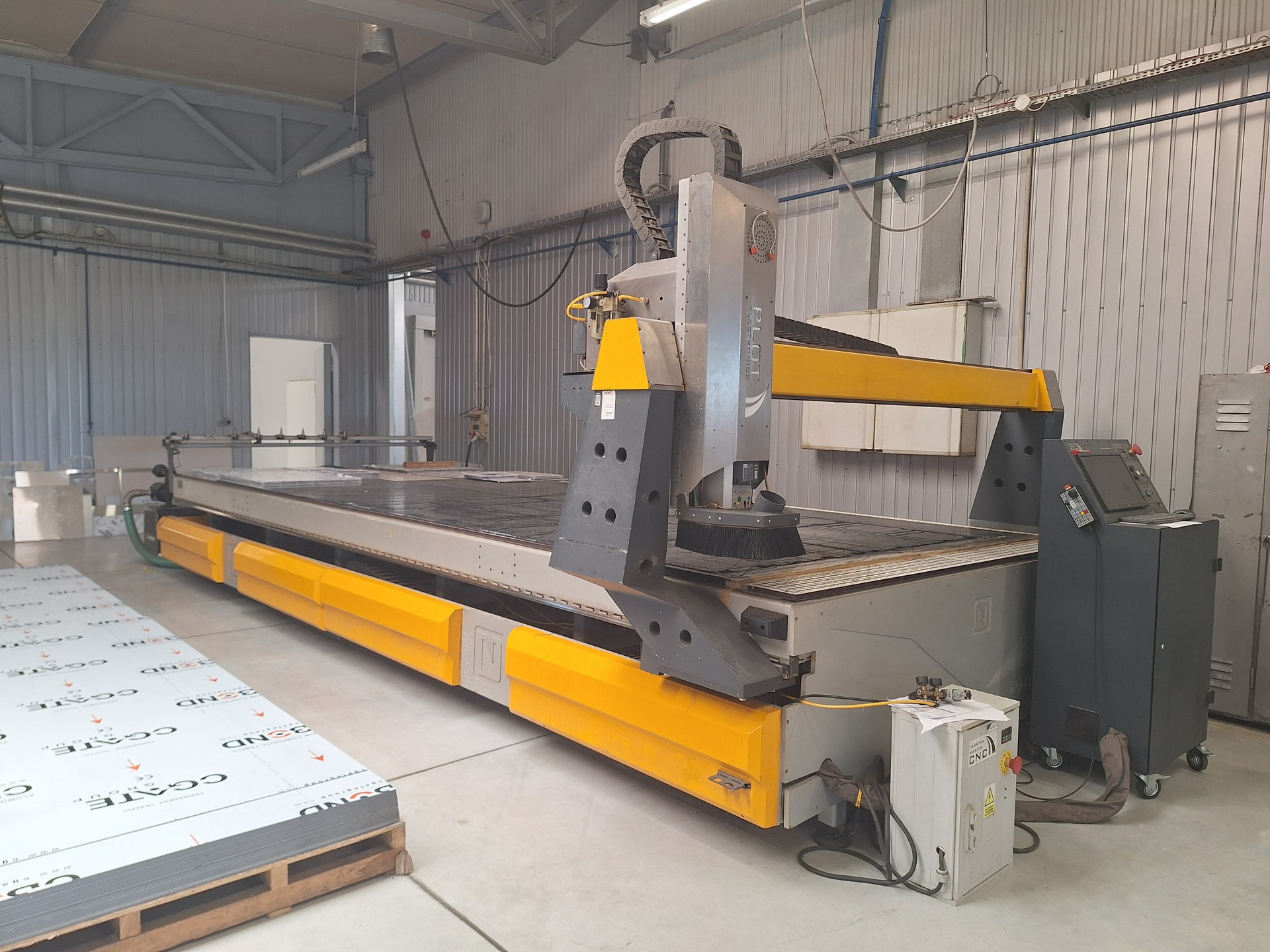

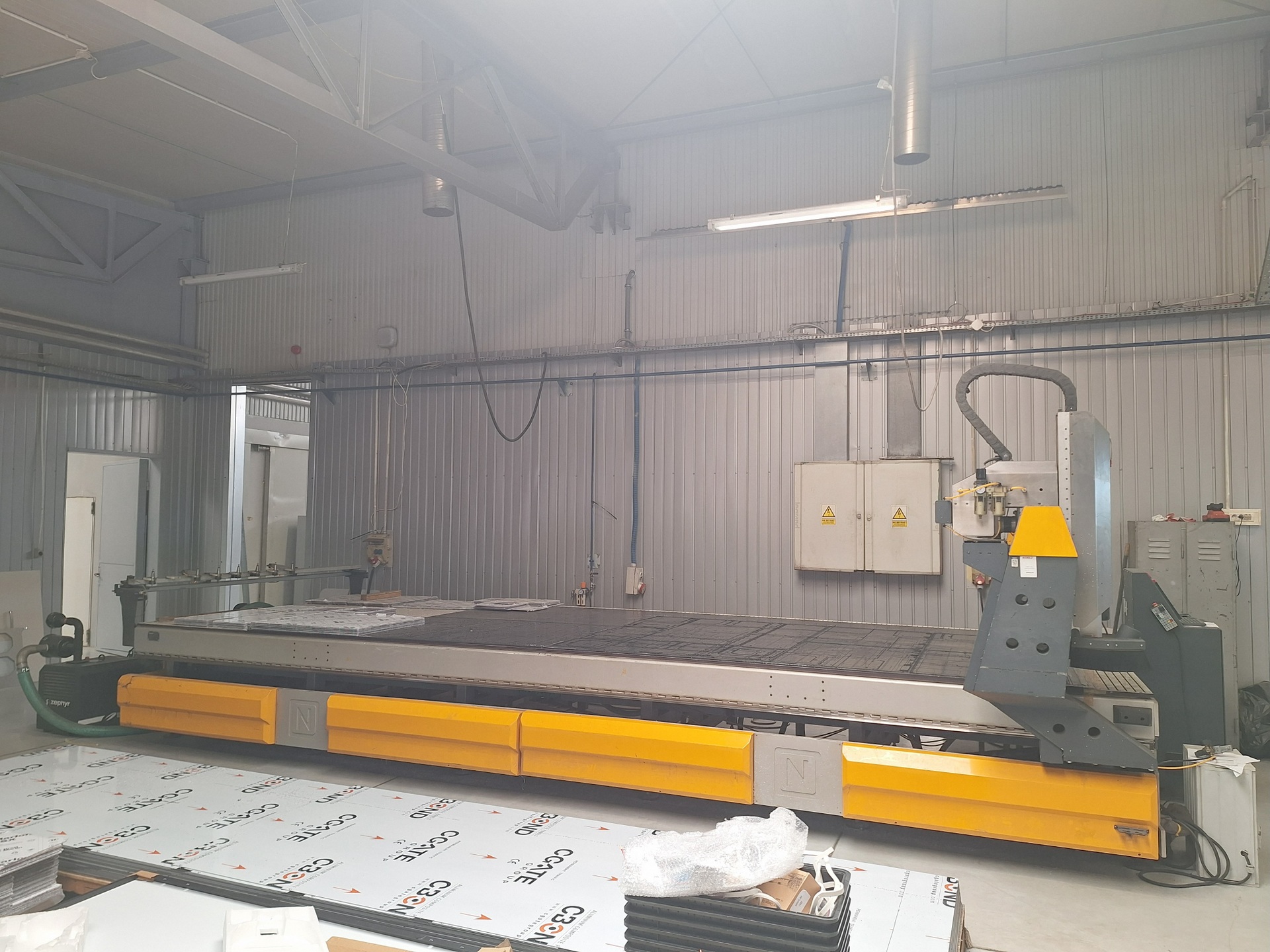

PLOT ELECTRONICS SENTINEL N 2160 CNC router

PLOT ELECTRONICS SENTINEL N 2160 CNC router was built in 2021 in Poland by PLOT Electronics. This extremely efficient machine is the perfect choice for precision machining of a wide range of materials, i.e. aluminium, plastics and wood. The machining process is performed on a large vacuum table by means of a reliable, high-speed spindle. X,Y,Z axes are in turn driven by reliable servo drives, which provide appropriate acceleration and speed in each direction. All this is complemented by a light, yet rigid design that eliminates any vibrations during even the most intense challenges. The offer price includes extensive equipment, consisting of, among others, a vacuum pump and advanced cncGraF Pro software. The SENTINEL N 2160 CNC milling machine weighs approximately 2000 kg. Technical specifications of the PLOT ELECTRONICS SENTINEL N 2160 milling machine software: cncGraF Pro machinable materials: aluminium, plastics, wood, wood-based materials, composites, foams feed in the X/Y/Z axis: 2100/6100/500 mm vacuum work table vacuum pump: ELMO RIETSCHLE ZEPHYR servo drives in all axes 6-position linear tool magazine tool length sensor cutter cooling system control cabinet with integrated computer air pressure: 6 bar ambient temperature: 15-35°C relative humidity: <80% noise level: <70 dB(A) power supply: 400 V; 50/60 Hz weight of the PLOT ELECTRONICS SENTINEL N 2160 machine: approx. 2000 kg
