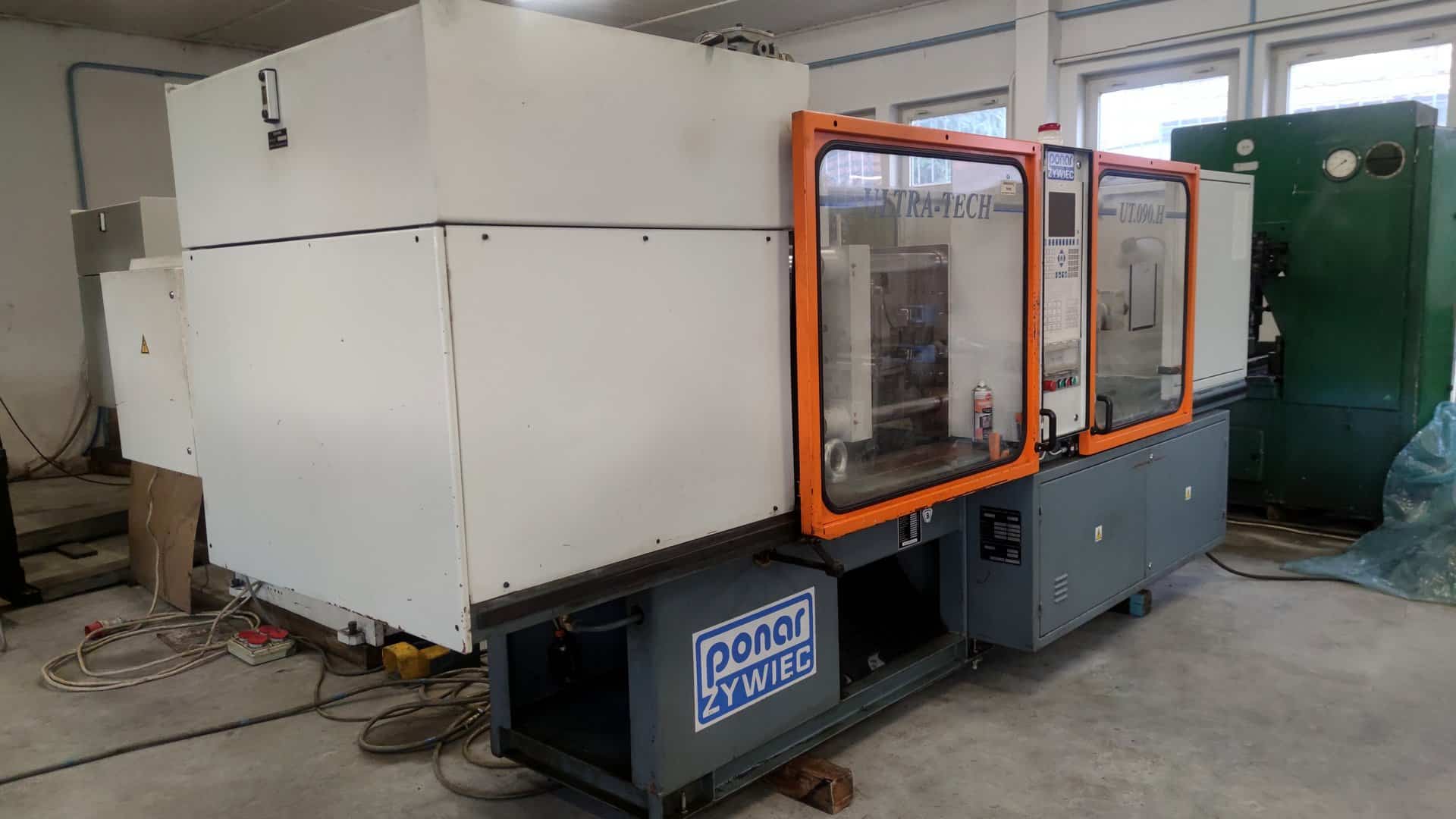

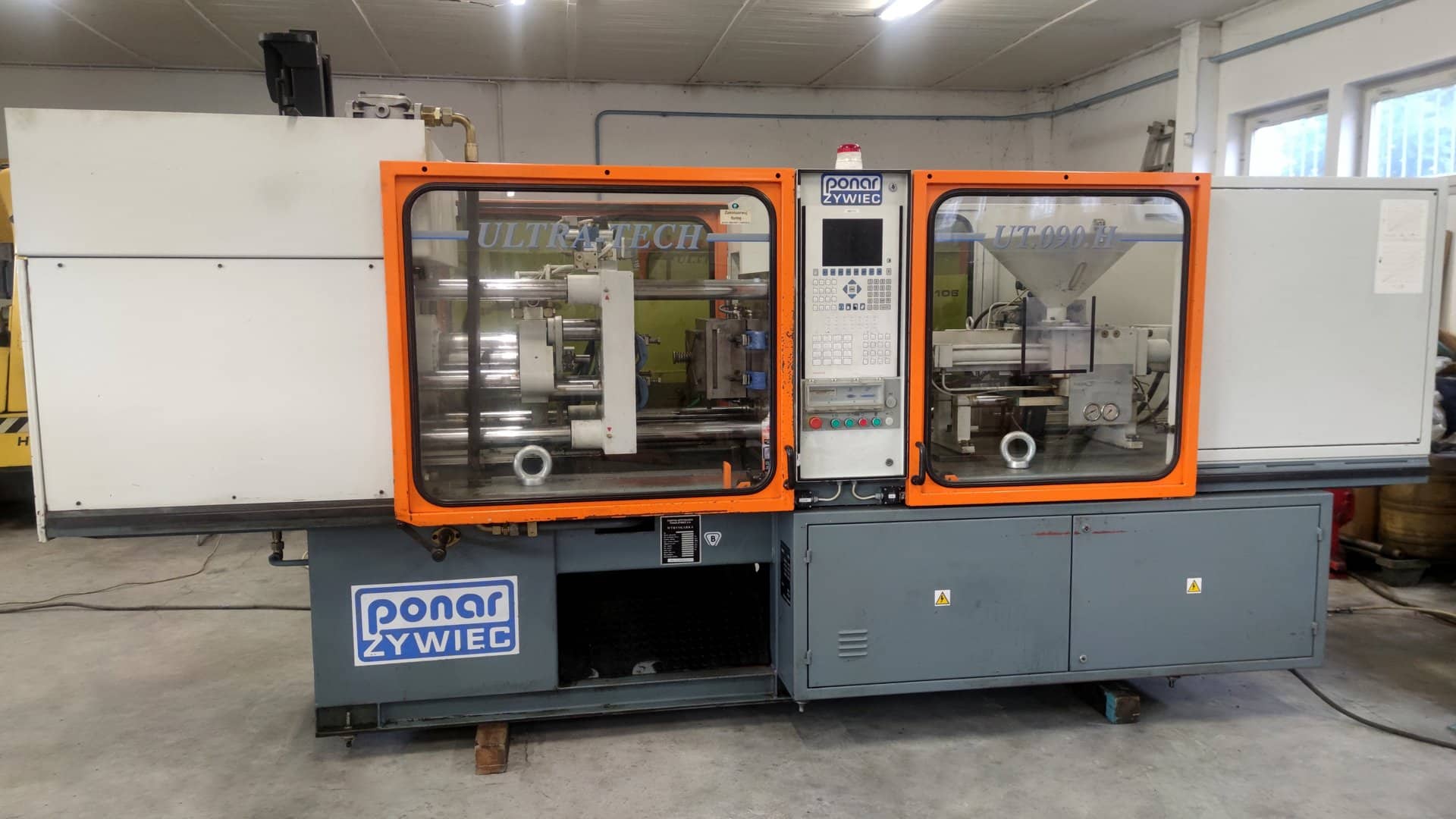

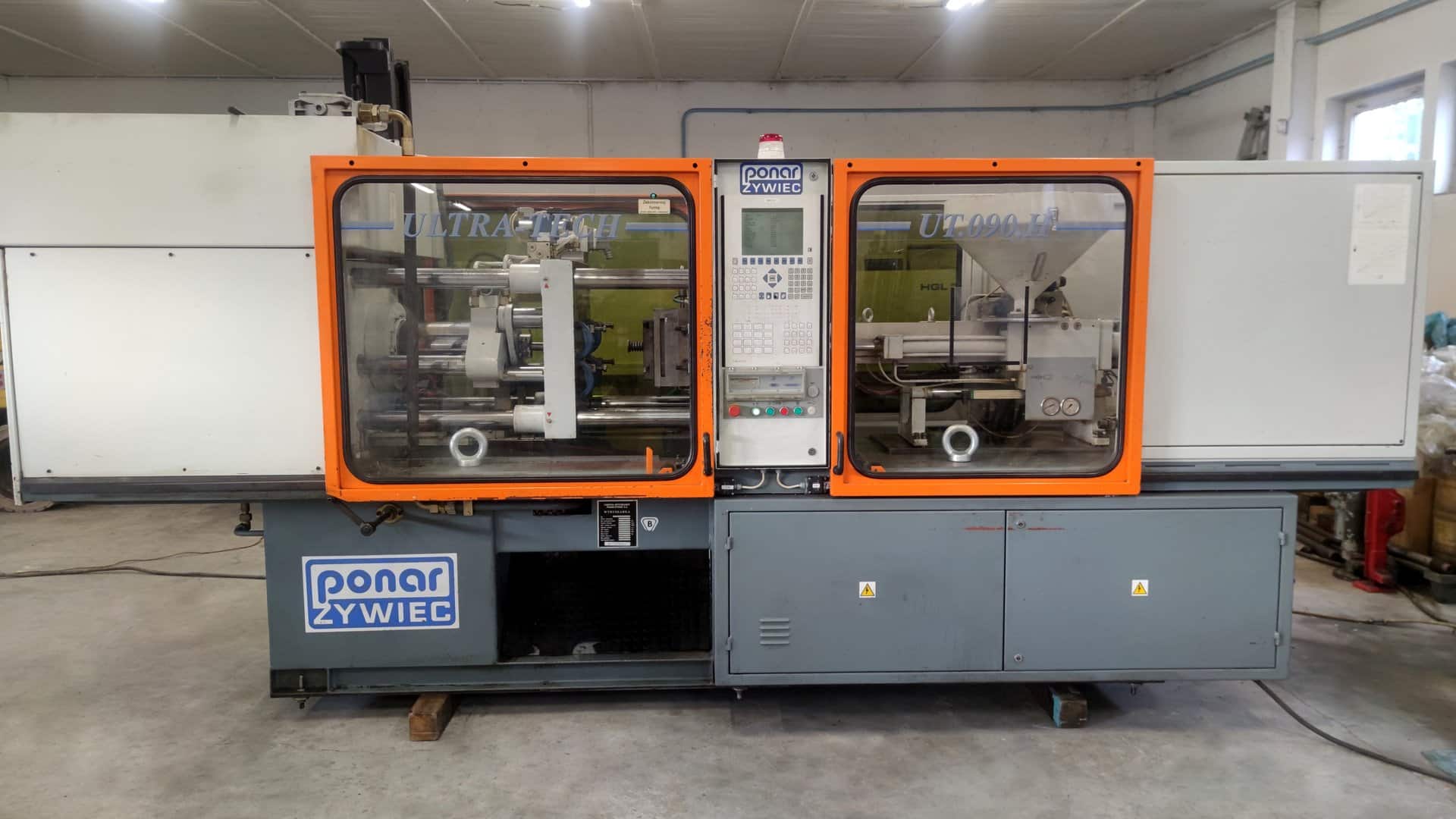

PONAR ŻYWIEC UT-090 H injection moulding machine

PONAR ŻYWIEC UT-090 H injection moulding machine was manufactured in 2001 in Poland. The machine, designed for plastic injection moulding, is equipped with high-end components, increasing productivity and ensuring high reliability. Located on the body of the injection moulding machine, an operator’s panel with an installed MOOG-BUHL CNC controller allows for complete automation of the injection process and control of parameters. Moulds with a minimum height of 225 mm, mounted on 615 x 615 mm platens, are closed with a force of 90 tonnes by a hydraulic clamping unit protected by fixed and movable guards. The combination of the high clamping force of the mould, together with a powerful screw with a diameter of 30 mm, guarantees the best quality of the manufactured products. The extensive equipment offered with the UT 090 H injection moulding machine includes a pneumatic plastic feeder and six anti-vibration pads. The total weight of the machine is 5050 kg. Technical data of the PONAR ŻYWIEC UT-090 H injection moulding machine mould clamping force: 90 t (900 kN) mould plate size (L x W): 615 x 615 mm maximum clearance between plates: 725 mm minimum mould height: 225 mm maximum mould opening stroke: 500 mm screw diameter: 30 mm screw stroke: 150 mm screw speed: 10-380 rpm maximum screw torque: 410 Nm clearance between columns: 420 x 420 mm injection volume: 106 cm3 maximum injection performance: 78 cm3/s maximum injection pressure: 217.7 MPa hydraulic ejector force: 33 kN hydraulic ejector stroke: 125 mm injection nozzle stroke: 250 mm injection nozzle clamping force: 57 kN number of heating zones: 3 nozzle heating power: 6,1 kW motor power: 18.5 kW hydraulic system pressure: 17.5 MPa power supply: 3x 380 V; 50 Hz dimensions (L x W x H): 4500 x 1400 x 2000 mm weight of the UT-090 H machine: 5050 kg Equipment of the injection moulding machine CNC controller: MOOG-BUHL pneumatic plastic feeder anti-vibration pads (6 pcs.) valves for cores (2 pcs.) hydraulic filters (2 pcs.) nest nozzle insert for clutch copies of programs on diskettes (2 pcs.) DTR – technical and propulsion documentation
