TOOLS FACTORY TF SMARTLINE 150 PLUS vacuum thermoforming machine

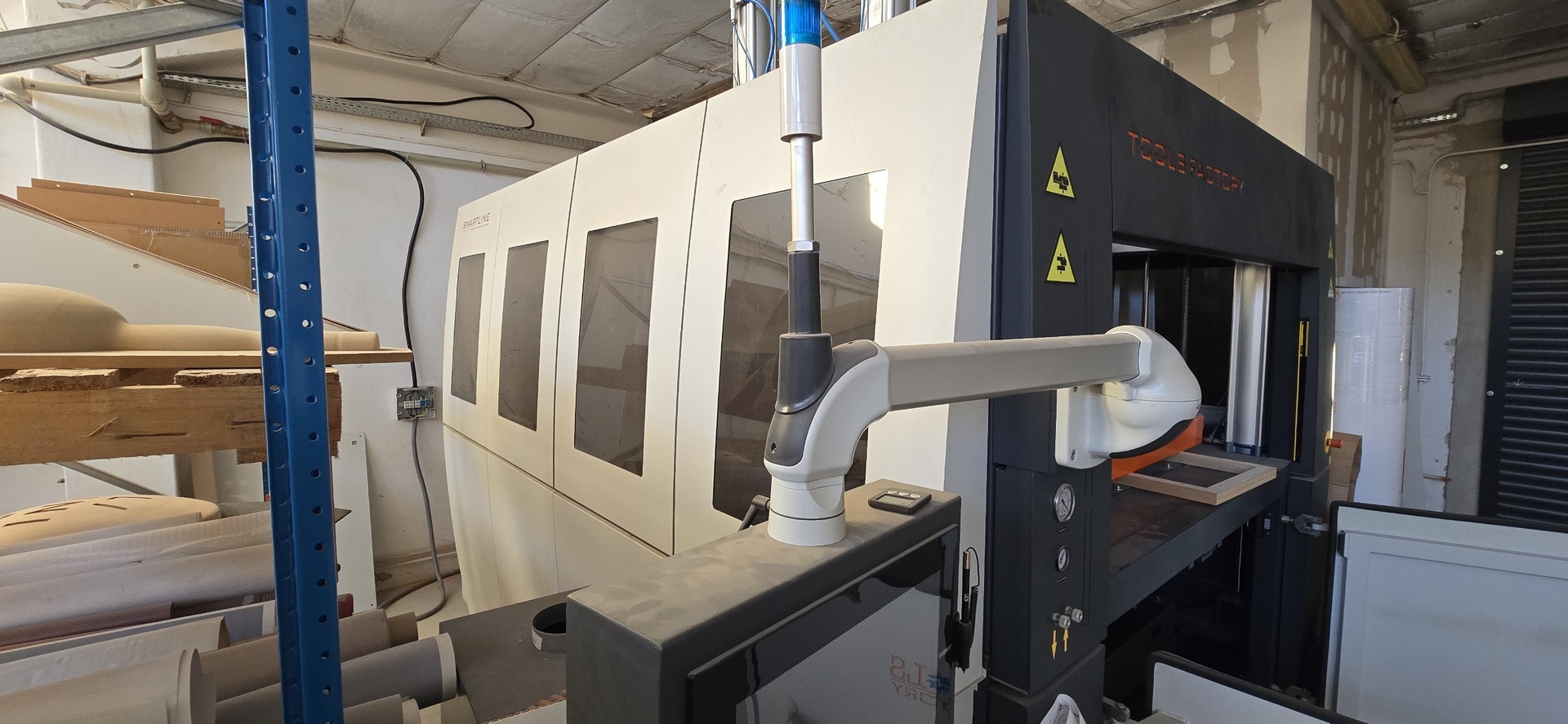

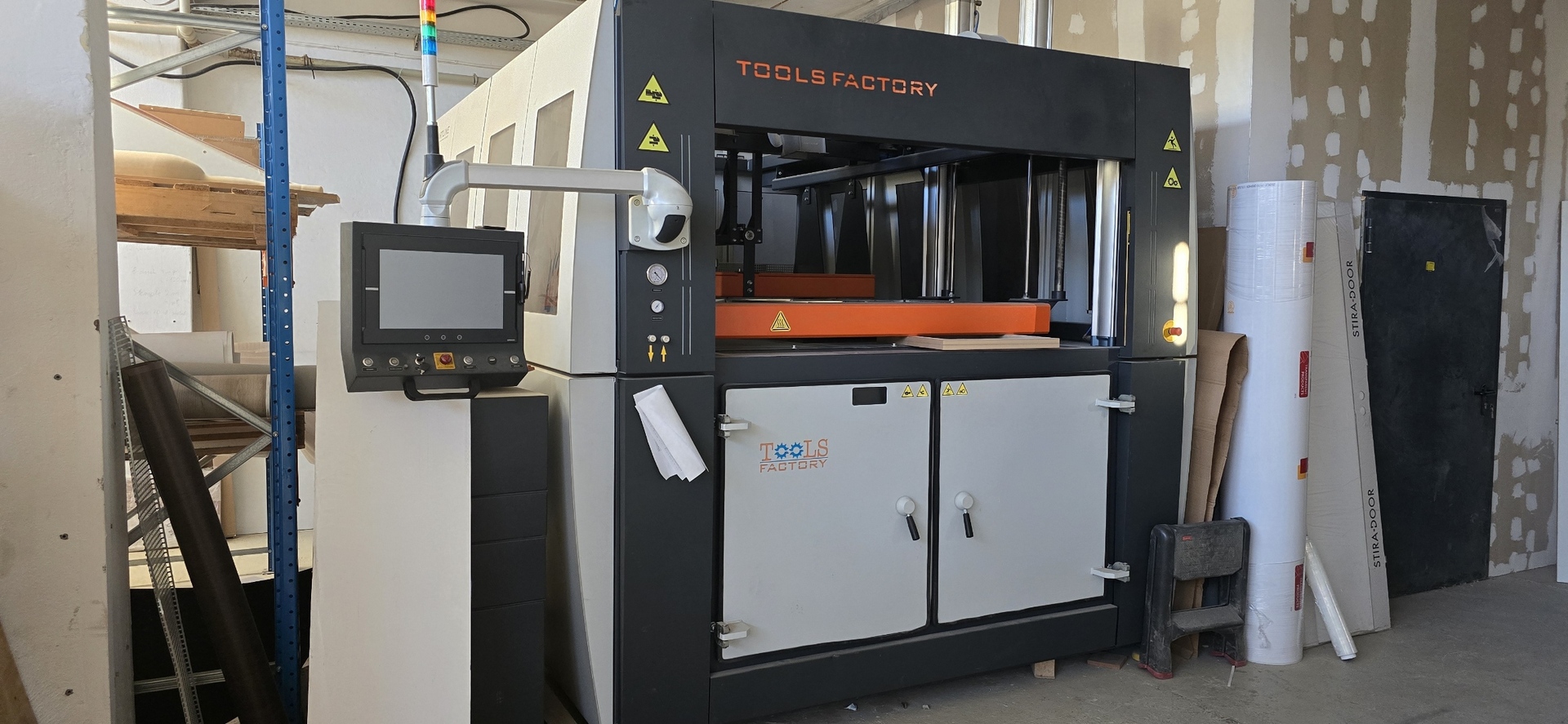

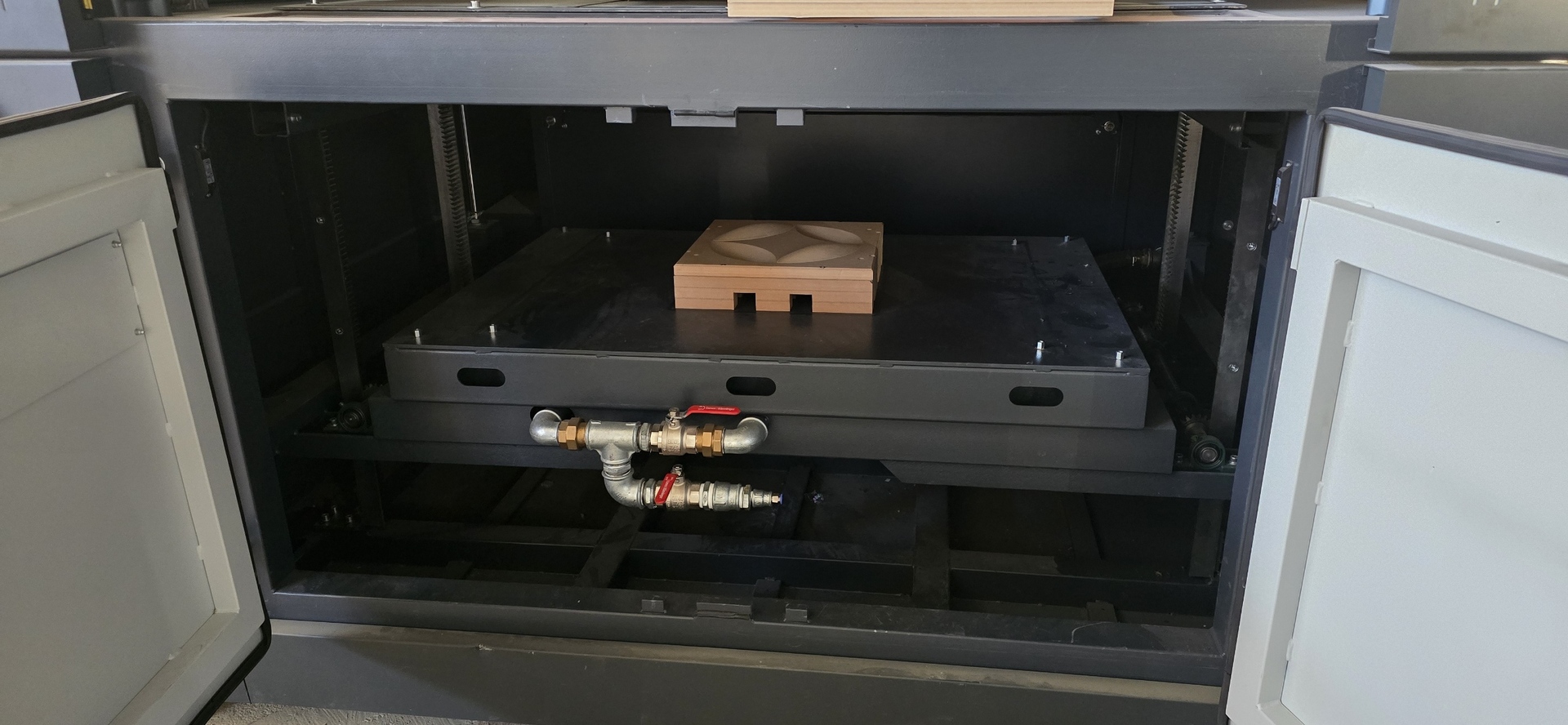

TOOLS FACTORY TF SMARTLINE 150 PLUS vacuum thermoforming machine was built in 2019 in Poland by Tools Factory Sp. j. The machine enables fully automatic production of high-quality plastic products, i.e. bathtubs, containers and automotive parts. The thermoforming process is performed using a vacuum, which precisely reproduces the plasticised material on the mould. The offer also includes extensive equipment, consisting of, among others, a modern control system and ceramic heaters. The TF SMARTLINE 150 PLUS vacuum thermoforming machine weighs approximately 5500 kg. Technical specifications of the TOOLS FACTORY TF SMARTLINE 150 PLUS thermoforming machine work area (L x W): 1450 x 950 mm maximum plate dimensions (L x W): 1500 x 1000 mm maximum mould height: 500 mm clamping force (work table): 6.7 t (67 kN) clamping force (clamping frame): 1.9 t (19 kN) work table drive: pneumatic clamping frame drive: pneumatic furnace drive: pneumatic vacuum pump capacity: 100 m3/h compressed air pressure: 6 bar noise level: 85 dB power consumption: 60 kW power supply: 3x 400 V dimensions (L x W x H): approx. 3700 x 4050 x 3400 mm weight of the TOOLS FACTORY TF SMARTLINE 150 machine: approx. 5500 kg Equipment of the TOOLS FACTORY thermoforming machine ceramic heaters vacuum pump (2 pcs.) pyrometer control and real-time temperature monitoring fan for material cooling 1500 m3/h (4 pcs.) safety system remote access, diagnostics and service
