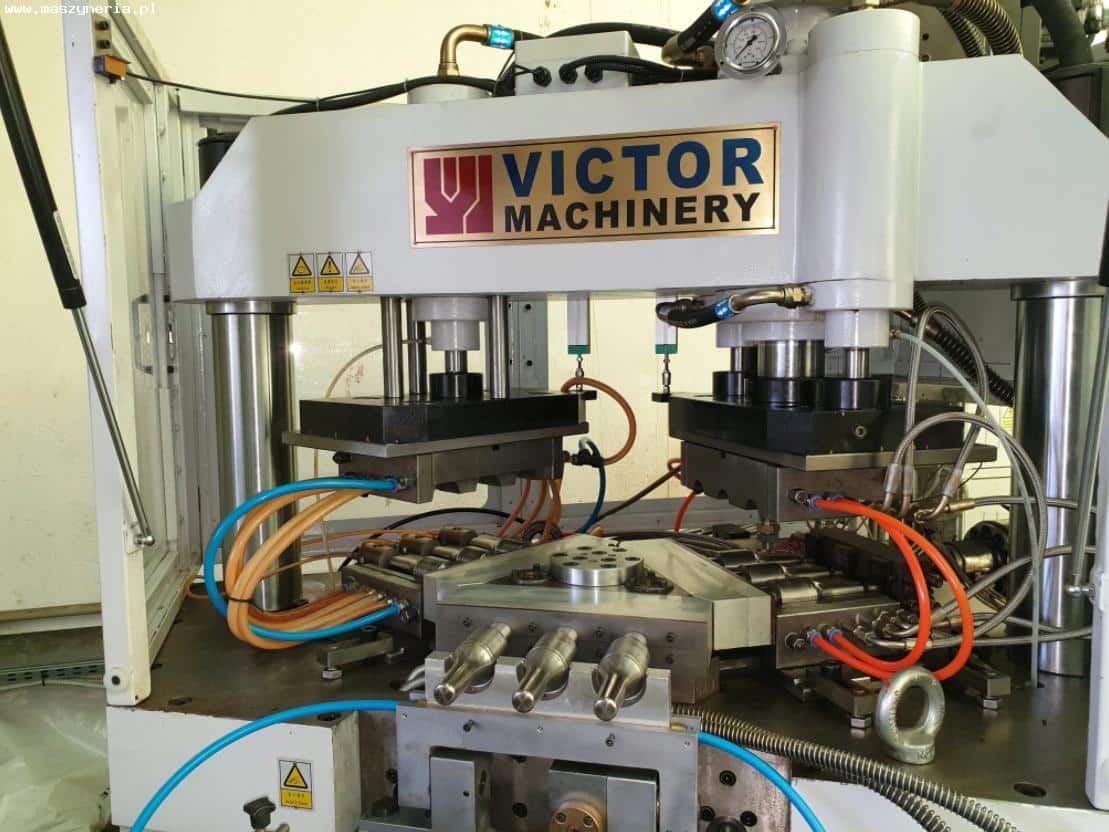

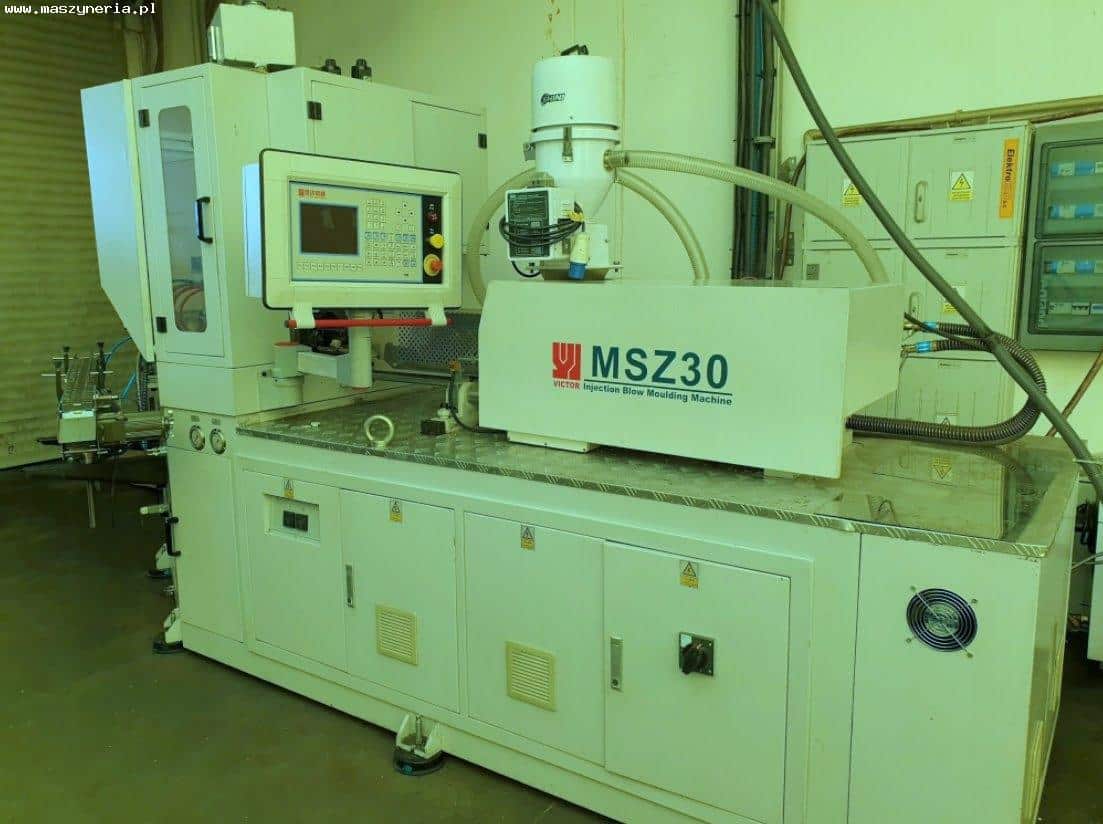

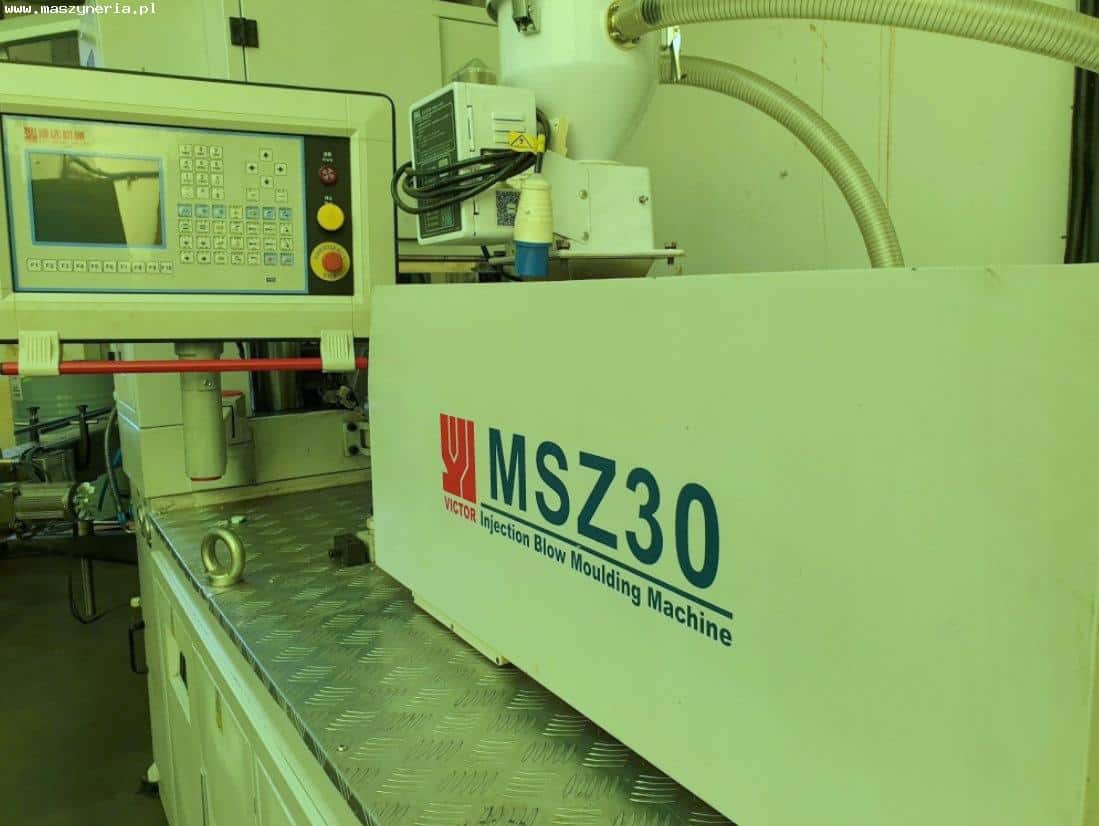

VICTOR MACHINERY MSZ 30 injection molding machine

VICTOR MACHINERY MSZ 30 injection molding machine was produced in 2015. The machine is used to produce bottles with a maximum height of ≤190mm and a maximum diameter of ≤100mm. It has a screw with a diameter of 40 mm, running at a speed of 10 to 225 revolutions per minute. The injection clamping force of the injection molding machine is 292 kN, and the blow-in clamp is 46.7 kN. The machine is fully operational. Technical data of the VICTOR MSZ30 injection molding machine – screw diameter: 40 mm – maximum speed of the screw: 10-225 rpm. – injection clamping force: 292 kN – blow clamping force: 46.7 kN – heating power: 8.3 kW – mold heating capacity: 3 kW – injection weight (HDPE): 190 g – maximum plate size (L x W): 400 × 270 mm – minimum mold thickness (H): 180 mm – opening: 220 mm – drying cycle: 3.5 sec. – engine power: 15 kW – hydraulic pressure: 15MPa – suitable bottle range: 3-800 ml – maximum bottle height: ≤190 mm – maximum bottle diameter: ≤100 mm – minimum air pressure: 1MPa – compressed air discharge rate: ≥0.7 M3/mm – screw L / D: 22:1 – water flow: 3 M3/h – total rated power with mold heating: 26.3 kW – dimensions (L x W x H): 3.26 x 1.2 x 2.2 m – net weight of the VICTOR MSZ 30 machine: 4 t
